Biodegradable PLA Pbat Polyethylene Polythene PE HDPE Plastic Extruder Film Blowing Machine Price

Basic Info

Model NO.	SJ-50/HMB600
After-sales Service	We Can Supply Service Online
Warranty	One Year
Type	PE Film Blowing Machine
Raw Material	PE
Maximum Folding Width of Film	600mm
Screw Diameter	50mm
Automation	Automatic
Computerized	Non-Computerized
Machine Weight	2000kg
Certification	CE, ISO9001:2008
Screw Diameter (mm)	50
Film Width(mm)	100-600
Film Thickness(mm)	0.006-0.10
Max. Extrusion Output (Kg/H)	60
Die Size(mm)	60/100 High Speed Type
Main Motor	Siemens Brand
Inverter	LG Brand
Temperature Controller	Omron Brand
Screen Changer	Yes
Air Ring	Double Vent Air Ring
Screw Length(L/D)	30:1
Blower	3kw-4kw
Cylinder Cooling	0.13*2/0.13*3
Driving Motor	15kw-30kw
Total Power	28kw-50kw
Transport Package	Wooden Plate
Specification	600mm
Trademark	RuiGao
Origin	Ruian Zhejiang China
HS Code	847730900
Production Capacity	20 Sets/Month

Product Description

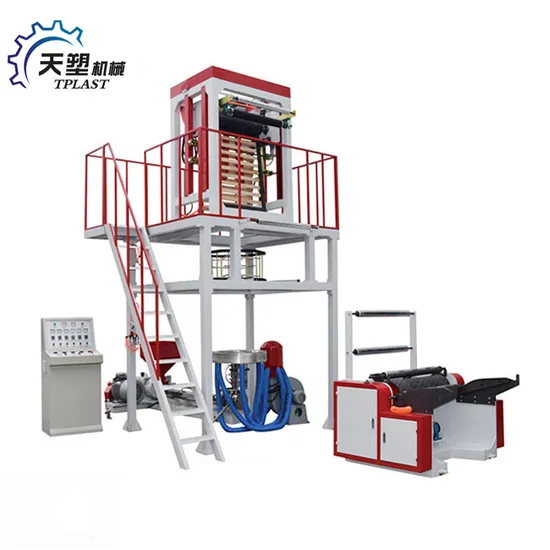

Machine Introduction

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Machine Advantages

1, We use stronger steel plate for machine body, which make machine more stable

2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, it is very hard. Bimetal Materials Taiwan Quality

3, Hard surface gearbox, the life can be more 10 years. GuoMao Brand

4, Motor with CE standard, more 10 years life, Siemens Brand.

5, Electric parts is CHINT, best supplier in China.

6, Easy to operate and one worker can run 3 sets

7, Temperautre Controller: Omron Brand

8, Inverter: LG Brand

9, Ceramic Heater: Heating faster and Keep warm longer

Machine Parameters

Model	SJ-50/HMB600	SJ-55/HMB800	SJ-60/HMB1000	SJ-65/HMB1200
Diameter of Screw	Φ50	Φ55	Φ60	Φ65
Max. Width of Folded Film(mm)	200-600	300-800	400-1000	600-1200
Single-face Thickness of Film(mm)	0.006-0.10	0.006-0.10	0.006-0.10	0.006-0.10
Max. Extrusion(kg/h)	60kg/h	70kg/h	80kg/h	90kg/h
L/D	30:1	30:1	30:1	30:1
Total Power (kw)	28	36	40	50
Driving Power(kw)	15	18.5	22	30
Cylinder cooling Power(kw)	0.13*2	0.13*2	0.13*3	0.13*3
Overall Dimensions(m)	5.0×2.1×4.0	5.0×2.3×4.2	5.0×2.3×4.5	5.0*2.3*5
Weight(kg)	2500	2800	3000	3200

Machine DetailsName: Gearbox
1.Function:reduce the speed of transferring2.Speed Rate:10:13.Gear:Hard surface4.Gear:Hard surface type,high quality5.Lubrication oil for transfering6.Low noise and longer lifeMain Motro:Siemens Brand
1.Running Speed:1400rpm2.Motor Power:380V,3phase,Power can be changed3.Motor Life:more 10yearsHeater:Ceramic heater function
1.heating faster than stainless heater2.life is longer to 5 years3.keeping hot inside is longer than stainless save power4.High quality ceramic and heating wire Inside.

Cover Stainless cover
1.Seperate stainless cover to control heater better and save the power consuption2.Separate blower on stainless cover3.Nice outlook for stainless cover4.High speed blower to cool barrel
Fast screen changer:
1.Save worker working time2.Never leakage for material3.Easily to change the fiter
Die head:Taiwan design high speed
1.#45 steel stronger2.Surface treatment,which make film more transparent3.Bigger size than normal,which improve the output of machinesGusset copied from Taiwan
1.Gusset part is copy from Taiwan,easy to adjust2.Wooden gusset part is makeDouble vent air ring:
1.Two lip to cool the film,it is faster than one lip.So it can improve the output of machine2.It can do HDPE and LDPE filmWe also have other products, if you interest, Please click FILM BLOWING MACHINEPLASTIC BAG MACHINERECYCLING MACHINE PRINTING MACHINE





1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer. We are Factory, so we have cost advantage than others 2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.Second, we control the quality of machine when we are processing. Third, Our installment engineer will test machine. 3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. Delivery time is 20 to 30 days. It is according to order quantity. 4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.



You are welcome to contact with us, we will provide excellent quotation and high quality machine
